Inheritance diagram for com.neuronrobotics.sdk.dyio.DyIOChannel:

Collaboration diagram for com.neuronrobotics.sdk.dyio.DyIOChannel:

[legend]

Public Member Functions
	DyIOChannel (DyIO dyio, int channel, DyIOChannelMode mode, boolean isEditable)

void	update (DyIO dyio, int channel, DyIOChannelMode mode, boolean isEditable)

int	getChannelNumber ()

boolean	isEditable ()

void	send (BowlerAbstractCommand command)

void	removeAllChannelModeChangeListener ()

void	removeChannelModeChangeListener (IDyIOChannelModeChangeListener l)

void	addChannelModeChangeListener (IDyIOChannelModeChangeListener l)

void	removeAllChannelEventListeners ()

void	removeChannelEventListener (IChannelEventListener l)

void	addChannelEventListener (IChannelEventListener l)

boolean	setMode (DyIOChannelMode mode)

DyIOChannelMode	getMode (boolean resync)

DyIO	getDevice ()

void	resync (boolean all)

boolean	canBeMode (DyIOChannelMode m)

boolean	hasAsync ()

Collection< DyIOChannelMode >	getAvailableModes ()

int	parseDyIOChannelEvent (DyIOChannelEvent e)

String	toString ()

DyIOChannel	getChannel ()

DyIOChannelMode	getMode ()

int	getValue ()

boolean	setMode (DyIOChannelMode mode, boolean async)

boolean	setValue (int value)

boolean	flush ()

void	setCachedValue (int cachedValue)

int	getCachedValue ()

boolean	getCachedMode ()

void	setCachedMode (boolean mode)

void	setDap (DyIOAbstractPeripheral dap)

DyIOAbstractPeripheral	getDap ()

boolean	configAdvancedAsyncNotEqual ()

boolean	configAdvancedAsyncDeadBand (int deadbandSize)

boolean	configAdvancedAsyncTreshhold (int threshholdValue, AsyncThreshholdEdgeType edgeType)

boolean	configAdvancedAsyncAutoSample ()

boolean	configAdvancedAsyncNotEqual (int msTime)

boolean	configAdvancedAsyncDeadBand (int msTime, int deadbandSize)

boolean	configAdvancedAsyncTreshhold (int msTime, int threshholdValue, AsyncThreshholdEdgeType edgeType)

boolean	configAdvancedAsyncAutoSample (int msTime)

DyIOChannelMode	getCurrentMode ()

void	setCachedTime (float cachedTime)

float	getCachedTime ()

void	setAsync (boolean b)

boolean	isStreamChannel ()

boolean	isStreamtMode (DyIOChannelMode m)

boolean	setValue (ByteList data)

Protected Member Functions
void	fireChannelEvent (DyIOChannelEvent e)

void	fireModeChangeEvent (DyIOChannelMode e)

int	getPreviousValue ()

Protected Attributes
int	cachedValue = 0

Private Member Functions
void	setPreviousValue (int previousValue)

void	setDevice (DyIO device)

boolean	isDefaultAsync (DyIOChannelMode m)

void	resyncIfNotSynced ()

boolean	isOutputMode (DyIOChannelMode m)

Private Attributes
int	MAXATTEMPTS = 3

float	cachedTime =0

DyIO	device

int	number

boolean	editable

DyIOChannelMode	current =null

boolean	isAsync =true

ArrayList< IChannelEventListener >	listeners = new ArrayList<IChannelEventListener>()

ArrayList< IDyIOChannelModeChangeListener >	modeListeners = new ArrayList< IDyIOChannelModeChangeListener>()

boolean	cachedMode =false

DyIOAbstractPeripheral	dap =null

int	previousValue = 1

boolean	haveSetMode = false

boolean	settingMode =false

ArrayList< DyIOChannelMode >	myModes

boolean	synced = false

Detailed Description

A DyIO channel. This represents a single DyIO pchannel.

Author: Kevin Harrington, Robert Breznak

Definition at line 39 of file DyIOChannel.java.

Constructor & Destructor Documentation

◆ DyIOChannel()

com.neuronrobotics.sdk.dyio.DyIOChannel.DyIOChannel	(	DyIO	dyio,
		int	channel,
		DyIOChannelMode	mode,
		boolean	isEditable
	)

Construct a channel object.

Parameters

dyio	The DyIO that the channel belongs on
channel	The Channel on the DyIO that this object corresponds to.
mode	The Type of channel.
isEditable	Lock the channel parameters after creation.

Definition at line 92 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.isEditable(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

Here is the call graph for this function:

Member Function Documentation

◆ addChannelEventListener()

void com.neuronrobotics.sdk.dyio.DyIOChannel.addChannelEventListener ( IChannelEventListener l )

Add an object that wishes to receive channel updates.

Parameters

l	The object that wishes to receive updates.

Definition at line 208 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.listeners.

◆ addChannelModeChangeListener()

void com.neuronrobotics.sdk.dyio.DyIOChannel.addChannelModeChangeListener ( IDyIOChannelModeChangeListener l )

Add an object that wishes to receive channel updates.

Parameters

l	The object that wishes to receive updates.

Definition at line 174 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.modeListeners.

◆ canBeMode()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.canBeMode ( DyIOChannelMode m )

This method verifies that this channel can be set to the mode given.

Parameters

m	the mode that is desired

Returns: if this channel has the capacity to become this mode

Definition at line 275 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setMode().

Here is the call graph for this function:

◆ configAdvancedAsyncAutoSample() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncAutoSample ( )

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the value is sampled on a real-time This sets the sample time to 100 ms clock and sent as async regardless of value change.

Returns: true if success

Definition at line 711 of file DyIOChannel.java.

◆ configAdvancedAsyncAutoSample() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncAutoSample ( int msTime )

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the value is sampled on a real-time clock and sent as async regardless of value change.

Parameters

msTime the sample time in MiliSeconds

Returns: true if success

Definition at line 757 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIO.configAdvancedAsyncAutoSample(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIOChannel.isAsync.

Here is the call graph for this function:

◆ configAdvancedAsyncDeadBand() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncDeadBand ( int deadbandSize )

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the values are outside a deadband This sets the sample time to 100 ms.

Parameters

deadbandSize the size in sensor units of the deadband

Returns: true if success

Definition at line 688 of file DyIOChannel.java.

◆ configAdvancedAsyncDeadBand() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncDeadBand	(	int	msTime,
		int	deadbandSize
	)

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the values are outside a deadband.

Parameters

msTime	the sample time in MiliSeconds
deadbandSize	the size in sensor units of the deadband

Returns: true if success

Definition at line 732 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIO.configAdvancedAsyncDeadBand(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIOChannel.isAsync.

Here is the call graph for this function:

◆ configAdvancedAsyncNotEqual() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncNotEqual ( )

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the values are not equal. This sets the sample time to 100 ms

Returns: true is success

Definition at line 677 of file DyIOChannel.java.

◆ configAdvancedAsyncNotEqual() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncNotEqual ( int msTime )

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the values are not equal.

Parameters

msTime the sample time in MiliSeconds

Returns: true if success

Definition at line 720 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIO.configAdvancedAsyncNotEqual(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIOChannel.isAsync.

Here is the call graph for this function:

◆ configAdvancedAsyncTreshhold() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncTreshhold	(	int	msTime,
		int	threshholdValue,
		AsyncThreshholdEdgeType	edgeType
	)

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the value crosses a threshhold.

Parameters

msTime	the sample time in MiliSeconds
threshholdValue	a value setpoint that triggers an even when it is crossed
edgeType	Rising, Falling, or both

Returns: true if success

Definition at line 745 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIO.configAdvancedAsyncTreshhold(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIOChannel.isAsync.

Here is the call graph for this function:

◆ configAdvancedAsyncTreshhold() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncTreshhold	(	int	threshholdValue,
		AsyncThreshholdEdgeType	edgeType
	)

This method configures the advanced async mode for a given DyIO channel to trigger on any event where the value crosses a threshhold This sets the sample time to 100 ms.

Parameters

threshholdValue	a value setpoint that triggers an even when it is crossed
edgeType	Rising, Falling, or both

Returns: true if success

Definition at line 700 of file DyIOChannel.java.

◆ fireChannelEvent()

void com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent ( DyIOChannelEvent e )

protected

Kicks off an event listener transaction for channel events.

Parameters

e	the event to pass to all listeners

Definition at line 352 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getPreviousValue(), com.neuronrobotics.sdk.common.Log.info(), com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamChannel(), com.neuronrobotics.sdk.dyio.DyIOChannel.listeners, com.neuronrobotics.sdk.dyio.DyIOChannel.parseDyIOChannelEvent(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setPreviousValue().

Referenced by com.neuronrobotics.sdk.dyio.DyIO.getAllChannelValues(), and com.neuronrobotics.sdk.dyio.DyIO.onAsyncResponse().

Here is the call graph for this function:

◆ fireModeChangeEvent()

void com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent ( DyIOChannelMode e )

protected

Kicks off an event listener transaction for channel mode change events.

Parameters

e	the event to pass to all listeners

Definition at line 371 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.canBeMode(), com.neuronrobotics.sdk.dyio.DyIOChannelMode.DIGITAL_IN, com.neuronrobotics.sdk.common.Log.error(), com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), com.neuronrobotics.sdk.common.Log.info(), com.neuronrobotics.sdk.dyio.DyIOChannel.modeListeners, and com.neuronrobotics.sdk.dyio.DyIOChannel.number.

Referenced by com.neuronrobotics.sdk.dyio.DyIO.resync(), com.neuronrobotics.sdk.dyio.DyIOChannel.resync(), com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

Here is the call graph for this function:

◆ flush()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.flush ( )

This method performs a single channel flush. This method will take the cached value, or the current value if none were cached, and send it to the device.

Returns: true if success

Definition at line 578 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

Here is the call graph for this function:

◆ getAvailableModes()

Collection<DyIOChannelMode> com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes ( )

Gets the available modes.

Returns: the available modes

Definition at line 310 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.canBeMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent().

Here is the call graph for this function:

◆ getCachedMode()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedMode ( )

This method checks if this channel is in cache/flush mode.

Returns: true if in cache/flush mode

Definition at line 640 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedMode.

◆ getCachedTime()

float com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedTime ( )

Gets the current cached time.

Returns: the cached time

Definition at line 792 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedTime.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.flush().

◆ getCachedValue()

int com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedValue ( )

Provides access to the current cache value.

Returns: the cached value

Definition at line 633 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedValue.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.flush().

◆ getChannel()

DyIOChannel com.neuronrobotics.sdk.dyio.DyIOChannel.getChannel ( )

This method returns the channel object when requested.

Returns: the DyIOChannel object

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 416 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.peripherals.DyIOAbstractPeripheral.getChannel().

◆ getChannelNumber()

int com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber ( )

Get the channel's number.

Returns: The Channel on the corresponding DyIO that this pin belongs to.

Definition at line 125 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.number.

◆ getCurrentMode()

DyIOChannelMode com.neuronrobotics.sdk.dyio.DyIOChannel.getCurrentMode ( )

Gets the current mode.

Returns: the current staate of the mode storage variable

Definition at line 773 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.current.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), com.neuronrobotics.sdk.dyio.DyIOChannelEvent.getValue(), com.neuronrobotics.sdk.dyio.DyIO.resync(), com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ getDap()

DyIOAbstractPeripheral com.neuronrobotics.sdk.dyio.DyIOChannel.getDap ( )

This method provides access to the abstract perpheral that will be using this channel object.

Returns: the dap

Definition at line 667 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.dap.

◆ getDevice()

DyIO com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice ( )

Returns the parent device that is providing the channels.

Returns: the device

Definition at line 249 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.device.

◆ getMode() [1/2]

DyIOChannelMode com.neuronrobotics.sdk.dyio.DyIOChannel.getMode ( )

Gets the channel's current mode.

Returns: the mode

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 424 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getCurrentMode().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent(), com.neuronrobotics.sdk.dyio.DyIOChannel.flush(), com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), com.neuronrobotics.sdk.dyio.DyIOChannel.hasAsync(), com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamChannel(), com.neuronrobotics.sdk.dyio.DyIOChannel.setAsync(), com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), com.neuronrobotics.sdk.dyio.DyIOChannel.setValue(), and com.neuronrobotics.sdk.dyio.DyIOChannel.toString().

Here is the call graph for this function:

◆ getMode() [2/2]

DyIOChannelMode com.neuronrobotics.sdk.dyio.DyIOChannel.getMode ( boolean resync )

Gets the mode of the channel. If resync is true, then the channel will do a live query to the device for its current mode and cache it to the channel for future use.

Identical to calling resync(false) before getMode()

Parameters

resync the resync

Returns: the mode

Definition at line 238 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.resync().

Referenced by com.neuronrobotics.sdk.dyio.peripherals.DyIOAbstractPeripheral.DyIOAbstractPeripheral(), com.neuronrobotics.sdk.dyio.peripherals.DyIOAbstractPeripheral.getConfigurationFromDevice(), com.neuronrobotics.sdk.dyio.DyIO.getMode(), com.neuronrobotics.sdk.dyio.DyIOInputStream.read(), and com.neuronrobotics.sdk.dyio.DyIOOutputStream.write().

Here is the call graph for this function:

◆ getPreviousValue()

int com.neuronrobotics.sdk.dyio.DyIOChannel.getPreviousValue ( )

protected

Gets the previous value.

Returns: the previous value

Definition at line 822 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.previousValue.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent(), and com.neuronrobotics.sdk.dyio.DyIOChannel.getValue().

◆ getValue()

int com.neuronrobotics.sdk.dyio.DyIOChannel.getValue ( )

Get the current value of a channel.

Returns: the current value

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 432 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIO.getValue().

Here is the call graph for this function:

◆ hasAsync()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.hasAsync ( )

Checks the current mode of this channel and checks if it is possible for it to have async.

Returns: thru if it is possible to be async

Definition at line 287 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getMode().

Here is the call graph for this function:

◆ isDefaultAsync()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isDefaultAsync ( DyIOChannelMode m )

private

Checks if is default async.

Parameters

m the m

Returns: true, if is default async

Definition at line 860 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.setMode().

◆ isEditable()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isEditable ( )

Can the parameters of this channel be edited?.

Returns: True if the parameters can be changed

Definition at line 134 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.editable.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.DyIOChannel(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ isOutputMode()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isOutputMode ( DyIOChannelMode m )

private

Checks if is output mode.

Parameters

m the m

Returns: true, if is output mode

Definition at line 920 of file DyIOChannel.java.

◆ isStreamChannel()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamChannel ( )

Checks if is stream channel.

Returns: true, if is stream channel

Definition at line 831 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getMode().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent(), com.neuronrobotics.sdk.dyio.DyIO.getAllChannelValues(), com.neuronrobotics.sdk.dyio.DyIOChannelEvent.getValue(), com.neuronrobotics.sdk.dyio.DyIO.onAsyncResponse(), com.neuronrobotics.sdk.dyio.DyIOChannel.parseDyIOChannelEvent(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

Here is the call graph for this function:

◆ isStreamtMode()

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamtMode ( DyIOChannelMode m )

Checks if is streamt mode.

Parameters

m the m

Returns: true, if is streamt mode

Definition at line 883 of file DyIOChannel.java.

◆ parseDyIOChannelEvent()

int com.neuronrobotics.sdk.dyio.DyIOChannel.parseDyIOChannelEvent ( DyIOChannelEvent e )

This method gets the value represented by the date portion of a DyIOChannelEvent.

Parameters

e	the event to parse

Returns: the value represented by the data section

Definition at line 341 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannelEvent.getValue(), and com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamChannel().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent().

Here is the call graph for this function:

◆ removeAllChannelEventListeners()

void com.neuronrobotics.sdk.dyio.DyIOChannel.removeAllChannelEventListeners ( )

Clear list of objects that have subscribed to channel updates.

Definition at line 184 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.listeners.

◆ removeAllChannelModeChangeListener()

void com.neuronrobotics.sdk.dyio.DyIOChannel.removeAllChannelModeChangeListener ( )

Clear list of objects that have subscribed to channel updates.

Definition at line 150 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.modeListeners.

◆ removeChannelEventListener()

void com.neuronrobotics.sdk.dyio.DyIOChannel.removeChannelEventListener ( IChannelEventListener l )

Remove a particular subscription.

Parameters

l	The object that has subscribed to updates

Definition at line 194 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.listeners.

◆ removeChannelModeChangeListener()

void com.neuronrobotics.sdk.dyio.DyIOChannel.removeChannelModeChangeListener ( IDyIOChannelModeChangeListener l )

Remove a particular subscription.

Parameters

l	The object that has subscribed to updates

Definition at line 160 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.modeListeners.

◆ resync()

void com.neuronrobotics.sdk.dyio.DyIOChannel.resync ( boolean all )

Live query the device for its mode and cache it.

Parameters

all	- should all channels be refreshed.

Definition at line 258 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent(), com.neuronrobotics.sdk.dyio.DyIOChannelMode.get(), com.neuronrobotics.sdk.common.ByteList.getByte(), com.neuronrobotics.sdk.common.BowlerDatagram.getData(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), com.neuronrobotics.sdk.dyio.DyIOChannel.number, com.neuronrobotics.sdk.dyio.DyIO.resync(), and com.neuronrobotics.sdk.dyio.DyIO.send().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), com.neuronrobotics.sdk.dyio.peripherals.CounterInputChannel.init(), com.neuronrobotics.sdk.dyio.peripherals.CounterOutputChannel.init(), com.neuronrobotics.sdk.dyio.DyIO.resync(), and com.neuronrobotics.sdk.dyio.DyIOChannel.resyncIfNotSynced().

Here is the call graph for this function:

◆ resyncIfNotSynced()

void com.neuronrobotics.sdk.dyio.DyIOChannel.resyncIfNotSynced ( )

private

Resync if not synced.

Definition at line 870 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.resync(), and com.neuronrobotics.sdk.dyio.DyIOChannel.synced.

Here is the call graph for this function:

◆ send()

void com.neuronrobotics.sdk.dyio.DyIOChannel.send ( BowlerAbstractCommand command )

Send a command to the Channel's DyIO.

Parameters

command The command to send.

Definition at line 142 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIO.send().

Here is the call graph for this function:

◆ setAsync()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setAsync ( boolean b )

Sets the asynchronus mode for this channel.

Parameters

b	the new async

Definition at line 801 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setMode().

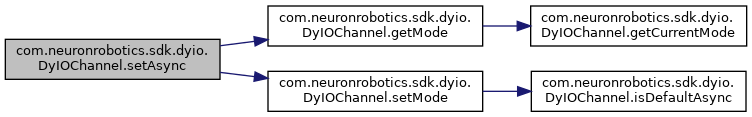

Here is the call graph for this function:

◆ setCachedMode()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedMode ( boolean mode )

This method enables/disables cache/flush mode for this channel.

Parameters

mode	the new cached mode

Definition at line 649 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedMode.

Referenced by com.neuronrobotics.sdk.dyio.sequencer.CoreScheduler.addServoChannel().

◆ setCachedTime()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedTime ( float cachedTime )

Sets the time to store for use by the flush. THis will only be used when flush is called from the channel If flush is called from the DyIO, time stored here will be ignored

Parameters

cachedTime the new cached time

Definition at line 783 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedTime.

Referenced by com.neuronrobotics.sdk.dyio.peripherals.CounterOutputChannel.SetPosition(), com.neuronrobotics.sdk.dyio.peripherals.ServoChannel.SetPosition(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

◆ setCachedValue()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedValue ( int cachedValue )

THis method allows the user to set a chached value to be sent to the device when a flush is called later on. THis method will not send this value to the device, a flush must be called later to send it.

Parameters

cachedValue the value to store as the cached value

Definition at line 624 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedValue.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getValue(), com.neuronrobotics.sdk.dyio.peripherals.CounterOutputChannel.SetPosition(), com.neuronrobotics.sdk.dyio.peripherals.ServoChannel.SetPosition(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

◆ setDap()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setDap ( DyIOAbstractPeripheral dap )

THis sets up the abstract peripheral object that is using this channel object.

Parameters

dap	the new dap

Definition at line 658 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.dap.

Referenced by com.neuronrobotics.sdk.dyio.peripherals.ServoChannel.ServoChannel().

◆ setDevice()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setDevice ( DyIO device )

private

Sets the device.

Parameters

device the new device

Definition at line 850 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.device.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ setMode() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.setMode ( DyIOChannelMode mode )

Set the mode of the DyIO Channel.

Parameters

mode	The desired channel mode.

Returns: True if successful

Definition at line 223 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.isDefaultAsync().

Referenced by com.neuronrobotics.sdk.dyio.peripherals.DyIOAbstractPeripheral.DyIOAbstractPeripheral(), com.neuronrobotics.sdk.dyio.peripherals.CounterInputChannel.init(), com.neuronrobotics.sdk.dyio.peripherals.CounterOutputChannel.init(), com.neuronrobotics.sdk.dyio.DyIOChannel.setAsync(), com.neuronrobotics.sdk.dyio.DyIO.setMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

Here is the call graph for this function:

◆ setMode() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.setMode	(	DyIOChannelMode	mode,
		boolean	async
	)

Set the mode of a channel.

Parameters

mode	the mode to set the channel to
async	if it should be async or not

Returns: if the action was successful

Legacy

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 473 of file DyIOChannel.java.

Here is the call graph for this function:

◆ setPreviousValue()

void com.neuronrobotics.sdk.dyio.DyIOChannel.setPreviousValue ( int previousValue )

private

Sets the previous value.

Parameters

previousValue the new previous value

Definition at line 813 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.previousValue.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent(), and com.neuronrobotics.sdk.dyio.DyIOChannel.getValue().

◆ setValue() [1/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.setValue ( ByteList value )

Set the value of a channel. Channels may not be able to be set to certain or potentially any values depending on the mode that a channel is in.

Parameters

value the value

Returns: true if successful

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 955 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), com.neuronrobotics.sdk.dyio.DyIOChannel.getMode(), com.neuronrobotics.sdk.dyio.DyIOChannel.isStreamChannel(), com.neuronrobotics.sdk.dyio.DyIOChannel.MAXATTEMPTS, com.neuronrobotics.sdk.dyio.DyIOChannel.number, com.neuronrobotics.sdk.common.BowlerMethod.POST, com.neuronrobotics.sdk.dyio.DyIO.send(), com.neuronrobotics.sdk.dyio.DyIOChannelMode.USART_RX, and com.neuronrobotics.sdk.dyio.DyIOChannelMode.USART_TX.

Here is the call graph for this function:

◆ setValue() [2/2]

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.setValue ( int value )

Set the value of a channel. Channels may not be able to be set to certain or potentially any values depending on the mode that a channel is in.

Parameters

value the value to set

Returns: if the action was successful

Implements com.neuronrobotics.sdk.dyio.IDyIOChannel.

Definition at line 563 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.cachedMode, com.neuronrobotics.sdk.dyio.DyIOChannel.dap, com.neuronrobotics.sdk.dyio.DyIOChannel.flush(), com.neuronrobotics.sdk.dyio.peripherals.DyIOAbstractPeripheral.flush(), com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedTime(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedValue().

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.flush(), com.neuronrobotics.sdk.dyio.DyIO.setValue(), and com.neuronrobotics.sdk.dyio.DyIOOutputStream.write().

Here is the call graph for this function:

◆ toString()

String com.neuronrobotics.sdk.dyio.DyIOChannel.toString ( )

Definition at line 408 of file DyIOChannel.java.

References com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), and com.neuronrobotics.sdk.dyio.DyIOChannel.getMode().

Here is the call graph for this function:

◆ update()

void com.neuronrobotics.sdk.dyio.DyIOChannel.update	(	DyIO	dyio,
		int	channel,
		DyIOChannelMode	mode,
		boolean	isEditable
	)

This method allows the user to update all of the content information of this instance of the object.

Parameters

dyio	the dyio
channel	the channel
mode	the mode
isEditable	the is editable

Definition at line 104 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.DyIOChannel().

Here is the call graph for this function:

Member Data Documentation

◆ cachedMode

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.cachedMode =false

private

The cached mode.

Definition at line 72 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedMode(), com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

◆ cachedTime

float com.neuronrobotics.sdk.dyio.DyIOChannel.cachedTime =0

private

The cached time.

Definition at line 45 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedTime(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedTime().

◆ cachedValue

int com.neuronrobotics.sdk.dyio.DyIOChannel.cachedValue = 0

protected

The cached value.

Definition at line 69 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getCachedValue(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setCachedValue().

◆ current

DyIOChannelMode com.neuronrobotics.sdk.dyio.DyIOChannel.current =null

private

The current.

Definition at line 57 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getCurrentMode().

◆ dap

DyIOAbstractPeripheral com.neuronrobotics.sdk.dyio.DyIOChannel.dap =null

private

The dap.

Definition at line 75 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getDap(), com.neuronrobotics.sdk.dyio.DyIOChannel.setDap(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

◆ device

DyIO com.neuronrobotics.sdk.dyio.DyIOChannel.device

private

The device.

Definition at line 48 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes(), com.neuronrobotics.sdk.dyio.DyIOChannel.getDevice(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setDevice().

◆ editable

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.editable

private

The editable.

Definition at line 54 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.isEditable(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ haveSetMode

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.haveSetMode = false

private

The have set mode.

Definition at line 81 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.setMode().

◆ isAsync

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.isAsync =true

private

The is async.

Definition at line 60 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncAutoSample(), com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncDeadBand(), com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncNotEqual(), com.neuronrobotics.sdk.dyio.DyIOChannel.configAdvancedAsyncTreshhold(), com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ listeners

ArrayList<IChannelEventListener> com.neuronrobotics.sdk.dyio.DyIOChannel.listeners = new ArrayList<IChannelEventListener>()

private

The listeners.

Definition at line 63 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.addChannelEventListener(), com.neuronrobotics.sdk.dyio.DyIOChannel.fireChannelEvent(), com.neuronrobotics.sdk.dyio.DyIOChannel.removeAllChannelEventListeners(), and com.neuronrobotics.sdk.dyio.DyIOChannel.removeChannelEventListener().

◆ MAXATTEMPTS

int com.neuronrobotics.sdk.dyio.DyIOChannel.MAXATTEMPTS = 3

private

The maxattempts.

Definition at line 42 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setValue().

◆ modeListeners

ArrayList< IDyIOChannelModeChangeListener> com.neuronrobotics.sdk.dyio.DyIOChannel.modeListeners = new ArrayList< IDyIOChannelModeChangeListener>()

private

The mode listeners.

Definition at line 66 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.addChannelModeChangeListener(), com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent(), com.neuronrobotics.sdk.dyio.DyIOChannel.removeAllChannelModeChangeListener(), and com.neuronrobotics.sdk.dyio.DyIOChannel.removeChannelModeChangeListener().

◆ myModes

ArrayList<DyIOChannelMode> com.neuronrobotics.sdk.dyio.DyIOChannel.myModes

private

This method gets a collection of all of the possible channel modes for this channel.

Definition at line 303 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes().

◆ number

int com.neuronrobotics.sdk.dyio.DyIOChannel.number

private

The number.

Definition at line 51 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.fireModeChangeEvent(), com.neuronrobotics.sdk.dyio.DyIOChannel.flush(), com.neuronrobotics.sdk.dyio.DyIOChannel.getAvailableModes(), com.neuronrobotics.sdk.dyio.DyIOChannel.getChannelNumber(), com.neuronrobotics.sdk.dyio.DyIOChannel.getValue(), com.neuronrobotics.sdk.dyio.DyIOChannel.resync(), com.neuronrobotics.sdk.dyio.DyIOChannel.setMode(), com.neuronrobotics.sdk.dyio.DyIOChannel.setValue(), and com.neuronrobotics.sdk.dyio.DyIOChannel.update().

◆ previousValue

int com.neuronrobotics.sdk.dyio.DyIOChannel.previousValue = 1

private

The previous value.

Definition at line 78 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.getPreviousValue(), and com.neuronrobotics.sdk.dyio.DyIOChannel.setPreviousValue().

◆ settingMode

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.settingMode =false

private

The setting mode.

Definition at line 84 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.setMode().

◆ synced

boolean com.neuronrobotics.sdk.dyio.DyIOChannel.synced = false

private

The synced.

Definition at line 865 of file DyIOChannel.java.

Referenced by com.neuronrobotics.sdk.dyio.DyIOChannel.resyncIfNotSynced().

The documentation for this class was generated from the following file:

java-bowler/src/main/java/com/neuronrobotics/sdk/dyio/DyIOChannel.java

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DyIOChannel()

Member Function Documentation

◆ addChannelEventListener()

◆ addChannelModeChangeListener()

◆ canBeMode()

◆ configAdvancedAsyncAutoSample() [1/2]

◆ configAdvancedAsyncAutoSample() [2/2]

◆ configAdvancedAsyncDeadBand() [1/2]

◆ configAdvancedAsyncDeadBand() [2/2]

◆ configAdvancedAsyncNotEqual() [1/2]

◆ configAdvancedAsyncNotEqual() [2/2]

◆ configAdvancedAsyncTreshhold() [1/2]

◆ configAdvancedAsyncTreshhold() [2/2]

◆ fireChannelEvent()

◆ fireModeChangeEvent()

◆ flush()

◆ getAvailableModes()

◆ getCachedMode()

◆ getCachedTime()

◆ getCachedValue()

◆ getChannel()

◆ getChannelNumber()

◆ getCurrentMode()

◆ getDap()

◆ getDevice()

◆ getMode() [1/2]

◆ getMode() [2/2]

◆ getPreviousValue()

◆ getValue()

◆ hasAsync()

◆ isDefaultAsync()

◆ isEditable()

◆ isOutputMode()

◆ isStreamChannel()

◆ isStreamtMode()

◆ parseDyIOChannelEvent()

◆ removeAllChannelEventListeners()

◆ removeAllChannelModeChangeListener()

◆ removeChannelEventListener()

◆ removeChannelModeChangeListener()

◆ resync()

◆ resyncIfNotSynced()

◆ send()

◆ setAsync()

◆ setCachedMode()

◆ setCachedTime()

◆ setCachedValue()

◆ setDap()

◆ setDevice()

◆ setMode() [1/2]

◆ setMode() [2/2]

◆ setPreviousValue()

◆ setValue() [1/2]

◆ setValue() [2/2]

◆ toString()

◆ update()

Member Data Documentation

◆ cachedMode

◆ cachedTime

◆ cachedValue

◆ current

◆ dap

◆ device

◆ editable

◆ haveSetMode

◆ isAsync

◆ listeners

◆ MAXATTEMPTS

◆ modeListeners

◆ myModes

◆ number

◆ previousValue

◆ settingMode
