com.neuronrobotics.sdk.network.BowlerTCPClient Class Reference

Inheritance diagram for com.neuronrobotics.sdk.network.BowlerTCPClient:

Collaboration diagram for com.neuronrobotics.sdk.network.BowlerTCPClient:

Public Member Functions
	BowlerTCPClient ()
	BowlerTCPClient (String addr, int port) throws Exception
	BowlerTCPClient (InetAddress addr, int port) throws Exception
void	setTCPAddress (InetAddress addr)
void	setTCPPort (int port) throws IOException
void	setTCPSocket (Socket sock)
boolean	connect ()
void	disconnect ()
boolean	reconnect ()
boolean	waitingForConnection ()
int	getReconnectRetry ()
void	setReconnectRetry (int reconnectRetry)
Public Member Functions inherited from com.neuronrobotics.sdk.common.BowlerAbstractConnection
void	setThreadedUpstreamPackets (boolean up)
BowlerDatagram	sendSynchronusly (BowlerDatagram sendable)
synchronized BowlerDatagram	sendSynchronusly (BowlerDatagram sendable, boolean switchParser)
void	sendAsync (BowlerDatagram sendable) throws IOException
void	setSynchronusPacketTimeoutTime (int sleepTime)
int	getSleepTime ()
long	msSinceLastSend ()
synchronized void	setConnected (boolean c)
boolean	isConnected ()
void	clearLastSyncronousResponse ()
BowlerDatagram	getLastSyncronousResponse ()
void	onDataReceived (BowlerDatagram data)
void	addDatagramListener (IBowlerDatagramListener listener)
void	removeDatagramListener (IBowlerDatagramListener listener)
void	setDataIns (DataInputStream dataIns)
DataInputStream	getDataIns () throws NullPointerException
void	setDataOuts (DataOutputStream dataOuts)
DataOutputStream	getDataOuts () throws NullPointerException
void	setChunkSize (int chunkSize)
int	getChunkSize ()
void	setAsyncQueue (QueueManager asyncQueue)
void	setSyncQueue (QueueManager syncQueue)
QueueManager	getAsyncQueue ()
QueueManager	getSyncQueue ()
void	addConnectionEventListener (IConnectionEventListener l)
void	removeConnectionEventListener (IConnectionEventListener l)
void	setSynchronousDatagramListener (ISynchronousDatagramListener l)
void	removeSynchronousDatagramListener (ISynchronousDatagramListener l)
RpcEncapsulation	locateRpc (String namespace, BowlerMethod method, String rpcString)
Object[]	parseResponse (String namespace, BowlerMethod method, String rpcString, BowlerDatagram dg)
Object[]	send (MACAddress addr, String namespace, BowlerMethod method, String rpcString, Object[] arguments, int retry) throws DeviceConnectionException
boolean	isInitializedNamespaces ()
ArrayList< String >	getNamespaces (MACAddress addr)
boolean	hasNamespace (String string, MACAddress addr)
ArrayList< RpcEncapsulation >	getRpcList (String namespace, MACAddress addr)
BowlerDatagram	send (BowlerAbstractCommand command, MACAddress addr, int retry) throws NoConnectionAvailableException, InvalidResponseException
BowlerDatagram	send (BowlerAbstractCommand command, MACAddress addr, int retry, boolean switchParser) throws NoConnectionAvailableException, InvalidResponseException
BowlerDatagram	send (BowlerAbstractCommand command, MACAddress addr) throws NoConnectionAvailableException, InvalidResponseException
BowlerDatagram	send (BowlerAbstractCommand command, MACAddress addr, boolean switchParser) throws NoConnectionAvailableException, InvalidResponseException
boolean	ping (MACAddress mac)
boolean	ping (MACAddress mac, boolean switchParser)
void	startHeartBeat ()
void	startHeartBeat (long msHeartBeatTime)
void	stopHeartBeat ()
double	getPercentagePrint ()
void	setPercentagePrint (double percentagePrint)
long	getLastWrite ()
void	setLastWrite (long lastWrite)
boolean	isUseThreadedStack ()
void	setUseThreadedStack (boolean useThreadedStack)
boolean	isBeater ()
void	setBeater (boolean beater)
BowlerDatagram	loadPacketFromPhy (ByteList bytesToPacketBuffer) throws NullPointerException, IOException
void	write (byte[] data) throws IOException

Static Public Member Functions
static ArrayList< InetAddress >	getAvailableSockets ()
Static Public Member Functions inherited from com.neuronrobotics.sdk.common.BowlerAbstractConnection
static BowlerAbstractCommand	getCommand (String namespace, BowlerMethod method, String rpcString, Object[] arguments, RpcEncapsulation rpc)

Private Attributes
int	sleepTime = 5000
int	reconnectRetry = 5
Socket	tcpSock = null
InetAddress	tcpAddr =null
int	port

Additional Inherited Members
Protected Member Functions inherited from com.neuronrobotics.sdk.common.BowlerAbstractConnection
BowlerDatagram	fireSyncOnReceive (BowlerDatagram datagram)
void	fireAsyncOnResponse (BowlerDatagram datagram)
void	waitForConnectioToBeReady ()

Detailed Description

The Class BowlerTCPClient.

Definition at line 37 of file BowlerTCPClient.java.

Constructor & Destructor Documentation

BowlerTCPClient() [1/3]

com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient

(

)

Instantiates a new bowler tcp client.

Definition at line 59 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.common.BowlerAbstractConnection.setSynchronusPacketTimeoutTime(), and com.neuronrobotics.sdk.network.BowlerTCPClient.sleepTime.

Here is the call graph for this function:

BowlerTCPClient() [2/3]

com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient	(	String	addr,
		int	port
	)		throws Exception

Instantiates a new bowler tcp client.

Parameters

addr	the addr
port	the port

Exceptions

Exception

the exception

Definition at line 70 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.common.Log.error(), com.neuronrobotics.sdk.common.Log.info(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.isConnected(), com.neuronrobotics.sdk.network.BowlerTCPClient.port, com.neuronrobotics.sdk.common.BowlerAbstractConnection.setSynchronusPacketTimeoutTime(), com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPAddress(), com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket(), and com.neuronrobotics.sdk.network.BowlerTCPClient.sleepTime.

Here is the call graph for this function:

BowlerTCPClient() [3/3]

com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient	(	InetAddress	addr,
		int	port
	)		throws Exception

Instantiates a new bowler tcp client.

Parameters

addr	the addr
port	the port

Exceptions

Exception

the exception

Definition at line 98 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.port.

Member Function Documentation

connect()

boolean com.neuronrobotics.sdk.network.BowlerTCPClient.connect

(

)

Attempt to establish a connection. Return if the attempt was successful.

Returns

true, if successful

Reimplemented from com.neuronrobotics.sdk.common.BowlerAbstractConnection.

Definition at line 149 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.common.BowlerAbstractConnection.isConnected(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.setConnected(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.setDataIns(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.setDataOuts(), and com.neuronrobotics.sdk.network.BowlerTCPClient.tcpSock.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket().

Here is the call graph for this function:

disconnect()

void com.neuronrobotics.sdk.network.BowlerTCPClient.disconnect

(

)

Disconnect and deactive the current connection.

Reimplemented from com.neuronrobotics.sdk.common.BowlerAbstractConnection.

Definition at line 169 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.common.BowlerAbstractConnection.getDataIns(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.setDataIns(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.setDataOuts(), com.neuronrobotics.sdk.network.BowlerTCPClient.tcpSock, and com.neuronrobotics.sdk.common.Log.warning().

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect().

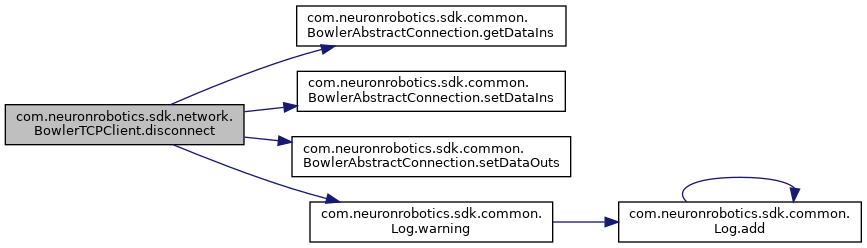

Here is the call graph for this function:

getAvailableSockets()

static ArrayList<InetAddress> com.neuronrobotics.sdk.network.BowlerTCPClient.getAvailableSockets ( )

static

This will broadcast out 1 packet on UDP socket 1865. It will wait for devices to respond and makes a list of the availible TCP sockets

Returns

list of devices that responded

Definition at line 194 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.UDPBowlerConnection.disconnect(), and com.neuronrobotics.sdk.network.UDPBowlerConnection.getAllAddresses().

Here is the call graph for this function:

getReconnectRetry()

int com.neuronrobotics.sdk.network.BowlerTCPClient.getReconnectRetry

(

)

Gets the reconnect retry.

Returns

the reconnect retry

Definition at line 255 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.reconnectRetry.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect().

reconnect()

boolean com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect

(

)

Reconnect.

Returns

true, if successful

Definition at line 219 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.connect(), com.neuronrobotics.sdk.network.BowlerTCPClient.disconnect(), com.neuronrobotics.sdk.common.Log.error(), com.neuronrobotics.sdk.network.BowlerTCPClient.getReconnectRetry(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.getSleepTime(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.isConnected(), com.neuronrobotics.sdk.network.BowlerTCPClient.port, com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket(), com.neuronrobotics.sdk.network.BowlerTCPClient.tcpAddr, com.neuronrobotics.sdk.util.ThreadUtil.wait(), and com.neuronrobotics.sdk.common.Log.warning().

Here is the call graph for this function:

setReconnectRetry()

void com.neuronrobotics.sdk.network.BowlerTCPClient.setReconnectRetry

(

int

reconnectRetry

)

Sets the reconnect retry.

Parameters

reconnectRetry

the new reconnect retry

Definition at line 264 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.reconnectRetry.

setTCPAddress()

void com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPAddress

(

InetAddress

addr

)

Sets the TCP address.

Parameters

addr	the new TCP address

Definition at line 107 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.tcpAddr.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient().

setTCPPort()

void com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPPort

(

int

port

)

throws IOException

Sets the TCP port.

Parameters

port	the new TCP port

Exceptions

IOException

Signals that an I/O exception has occurred.

Definition at line 117 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.common.BowlerAbstractConnection.isConnected(), com.neuronrobotics.sdk.network.BowlerTCPClient.port, com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket(), and com.neuronrobotics.sdk.network.BowlerTCPClient.tcpAddr.

Here is the call graph for this function:

setTCPSocket()

void com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket

(

Socket

sock

)

Sets the TCP socket.

Parameters

sock	the new TCP socket

Definition at line 130 of file BowlerTCPClient.java.

References com.neuronrobotics.sdk.network.BowlerTCPClient.connect(), com.neuronrobotics.sdk.common.Log.info(), com.neuronrobotics.sdk.common.BowlerAbstractConnection.isConnected(), and com.neuronrobotics.sdk.network.BowlerTCPClient.tcpSock.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient(), com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPPort().

Here is the call graph for this function:

waitingForConnection()

boolean com.neuronrobotics.sdk.network.BowlerTCPClient.waitingForConnection

(

)

Attempt to re-establish a connection. Return if the attempt was successful.

Returns

true, if successful Attempt to re-establish a connection. Return if the attempt was successful.

true, if successful

Reimplemented from com.neuronrobotics.sdk.common.BowlerAbstractConnection.

Definition at line 245 of file BowlerTCPClient.java.

Member Data Documentation

port

int com.neuronrobotics.sdk.network.BowlerTCPClient.port

private

The port.

Definition at line 53 of file BowlerTCPClient.java.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient(), com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPPort().

reconnectRetry

int com.neuronrobotics.sdk.network.BowlerTCPClient.reconnectRetry = 5

private

The reconnect retry.

Definition at line 43 of file BowlerTCPClient.java.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.getReconnectRetry(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setReconnectRetry().

sleepTime

int com.neuronrobotics.sdk.network.BowlerTCPClient.sleepTime = 5000

private

The sleep time.

Definition at line 40 of file BowlerTCPClient.java.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.BowlerTCPClient().

tcpAddr

InetAddress com.neuronrobotics.sdk.network.BowlerTCPClient.tcpAddr =null

private

The tcp addr.

Definition at line 49 of file BowlerTCPClient.java.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.reconnect(), com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPAddress(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPPort().

tcpSock

Socket com.neuronrobotics.sdk.network.BowlerTCPClient.tcpSock = null

private

The tcp sock.

Definition at line 46 of file BowlerTCPClient.java.

Referenced by com.neuronrobotics.sdk.network.BowlerTCPClient.connect(), com.neuronrobotics.sdk.network.BowlerTCPClient.disconnect(), and com.neuronrobotics.sdk.network.BowlerTCPClient.setTCPSocket().

---

The documentation for this class was generated from the following file:

• java-bowler/src/main/java/com/neuronrobotics/sdk/network/BowlerTCPClient.java
