eu.mihosoft.vrl.v3d.Vertex Class Reference

Collaboration diagram for eu.mihosoft.vrl.v3d.Vertex:

Public Member Functions
	Vertex (Vector3d pos, Vector3d normal)
Vertex	clone ()
void	flip ()
Vertex	interpolate (Vertex other, double t)
String	toStlString ()
StringBuilder	toStlString (StringBuilder sb)
StringBuilder	toObjString (StringBuilder sb)
String	toObjString ()
Vertex	transform (Transform transform)
Vertex	transformed (Transform transform)
double	getWeight ()
void	setWeight (double weight)
int	hashCode ()
boolean	equals (Object obj)
String	toString ()
double	getX ()
double	getY ()
double	getZ ()

Public Attributes
Vector3d	pos
Vector3d	normal

Private Member Functions
	Vertex (Vector3d pos, Vector3d normal, double weight)

Private Attributes
double	weight = 1.0

Detailed Description

Represents a vertex of a polygon. This class provides normal so primitives like Cube can return a smooth vertex normal, but normal is not used anywhere else.

Definition at line 44 of file Vertex.java.

Constructor & Destructor Documentation

Vertex() [1/2]

eu.mihosoft.vrl.v3d.Vertex.Vertex	(	Vector3d	pos,
		Vector3d	normal
	)

Constructor. Creates a vertex.

Parameters

pos	position
normal	normal

Definition at line 65 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.normal, and eu.mihosoft.vrl.v3d.Vertex.pos.

Referenced by eu.mihosoft.vrl.v3d.Vertex.clone(), eu.mihosoft.vrl.v3d.Vertex.equals(), and eu.mihosoft.vrl.v3d.Vertex.interpolate().

Vertex() [2/2]

eu.mihosoft.vrl.v3d.Vertex.Vertex ( Vector3d  pos, Vector3d  normal, double  weight  )

private

Constructor. Creates a vertex.

Parameters

pos	position
normal	normal
weight	weight

Definition at line 78 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.normal, eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vertex.weight.

Member Function Documentation

clone()

Vertex eu.mihosoft.vrl.v3d.Vertex.clone

(

)

Definition at line 88 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.clone(), eu.mihosoft.vrl.v3d.Vertex.normal, eu.mihosoft.vrl.v3d.Vertex.pos, eu.mihosoft.vrl.v3d.Vertex.Vertex(), and eu.mihosoft.vrl.v3d.Vertex.weight.

Referenced by eu.mihosoft.vrl.v3d.Plane.splitPolygon(), and eu.mihosoft.vrl.v3d.Vertex.transformed().

Here is the call graph for this function:

equals()

boolean eu.mihosoft.vrl.v3d.Vertex.equals

(

Object

obj

)

Definition at line 205 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Plane.EPSILON_Point, eu.mihosoft.vrl.v3d.Vertex.pos, eu.mihosoft.vrl.v3d.Vector3d.test(), and eu.mihosoft.vrl.v3d.Vertex.Vertex().

Referenced by eu.mihosoft.vrl.v3d.Edge._toPolygons(), eu.mihosoft.vrl.v3d.Edge.boundaryPaths(), and eu.mihosoft.vrl.v3d.Edge.toPolygons().

Here is the call graph for this function:

flip()

void eu.mihosoft.vrl.v3d.Vertex.flip

(

)

Inverts all orientation-specific data. (e.g. vertex normal).

Definition at line 95 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.negated(), and eu.mihosoft.vrl.v3d.Vertex.normal.

Here is the call graph for this function:

getWeight()

double eu.mihosoft.vrl.v3d.Vertex.getWeight

(

)

Gets the weight.

Returns

the weight

Definition at line 178 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.weight.

getX()

double eu.mihosoft.vrl.v3d.Vertex.getX

(

)

Definition at line 228 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vector3d.x().

Referenced by com.neuronrobotics.bowlerstudio.physics.CSGPhysicsManager.loadCSGToPoints(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), and eu.mihosoft.vrl.v3d.Edge.toString().

Here is the call graph for this function:

getY()

double eu.mihosoft.vrl.v3d.Vertex.getY

(

)

Definition at line 231 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vector3d.y().

Referenced by com.neuronrobotics.bowlerstudio.physics.CSGPhysicsManager.loadCSGToPoints(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), and eu.mihosoft.vrl.v3d.Edge.toString().

Here is the call graph for this function:

getZ()

double eu.mihosoft.vrl.v3d.Vertex.getZ

(

)

Definition at line 234 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Slice.isVertexAtZero(), com.neuronrobotics.bowlerstudio.physics.CSGPhysicsManager.loadCSGToPoints(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), and eu.mihosoft.vrl.v3d.Edge.toString().

Here is the call graph for this function:

hashCode()

int eu.mihosoft.vrl.v3d.Vertex.hashCode

(

)

Definition at line 195 of file Vertex.java.

interpolate()

Vertex eu.mihosoft.vrl.v3d.Vertex.interpolate	(	Vertex	other,
		double	t
	)

Create a new vertex between this vertex and the specified vertex by linearly interpolating all properties using a parameter t.

Parameters

other	vertex
t	interpolation parameter

Returns

a new vertex between this and the specified vertex

Definition at line 107 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.lerp(), eu.mihosoft.vrl.v3d.Vertex.normal, eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vertex.Vertex().

Referenced by eu.mihosoft.vrl.v3d.Plane.splitPolygon().

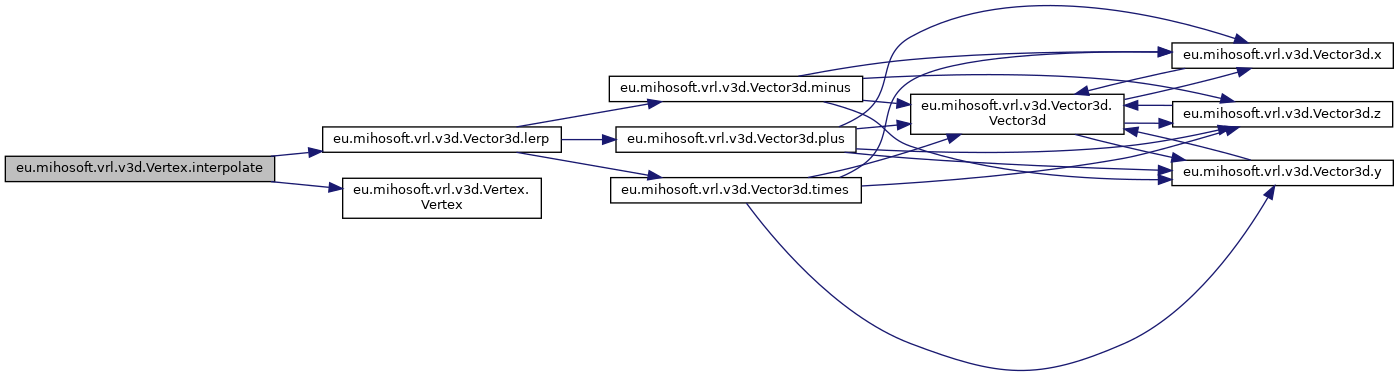

Here is the call graph for this function:

setWeight()

void eu.mihosoft.vrl.v3d.Vertex.setWeight

(

double

weight

)

Sets the weight.

Parameters

weight

the weight to set

Definition at line 187 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.weight.

toObjString() [1/2]

String eu.mihosoft.vrl.v3d.Vertex.toObjString

(

)

Returns this vertex in OBJ string format.

Returns

this vertex in OBJ string format

Definition at line 148 of file Vertex.java.

toObjString() [2/2]

StringBuilder eu.mihosoft.vrl.v3d.Vertex.toObjString

(

StringBuilder

sb

)

Returns this vertex in OBJ string format.

Parameters

sb	string builder

Returns

the specified string builder

Definition at line 138 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.toObjString().

Referenced by eu.mihosoft.vrl.v3d.CSG.toObjString().

Here is the call graph for this function:

toStlString() [1/2]

String eu.mihosoft.vrl.v3d.Vertex.toStlString

(

)

Returns this vertex in STL string format.

Returns

this vertex in STL string format

Definition at line 117 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.toStlString().

Here is the call graph for this function:

toStlString() [2/2]

StringBuilder eu.mihosoft.vrl.v3d.Vertex.toStlString

(

StringBuilder

sb

)

Returns this vertex in STL string format.

Parameters

sb	string builder

Returns

the specified string builder

Definition at line 127 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vector3d.toStlString().

Here is the call graph for this function:

toString()

String eu.mihosoft.vrl.v3d.Vertex.toString

(

)

Definition at line 223 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.pos, and eu.mihosoft.vrl.v3d.Vector3d.toString().

Here is the call graph for this function:

transform()

Vertex eu.mihosoft.vrl.v3d.Vertex.transform

(

Transform

transform

)

Applies the specified transform to this vertex.

Parameters

transform

the transform to apply

Returns

this vertex

Definition at line 158 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.pos, eu.mihosoft.vrl.v3d.Vector3d.transform(), and eu.mihosoft.vrl.v3d.Vertex.weight.

Referenced by eu.mihosoft.vrl.v3d.CSG.toObjString(), and eu.mihosoft.vrl.v3d.Vertex.transformed().

Here is the call graph for this function:

transformed()

Vertex eu.mihosoft.vrl.v3d.Vertex.transformed

(

Transform

transform

)

Applies the specified transform to a copy of this vertex.

Parameters

transform

the transform to apply

Returns

a copy of this transform

Definition at line 169 of file Vertex.java.

References eu.mihosoft.vrl.v3d.Vertex.clone(), and eu.mihosoft.vrl.v3d.Vertex.transform().

Here is the call graph for this function:

Member Data Documentation

normal

Vector3d eu.mihosoft.vrl.v3d.Vertex.normal

Normal.

Definition at line 54 of file Vertex.java.

Referenced by eu.mihosoft.vrl.v3d.Vertex.clone(), eu.mihosoft.vrl.v3d.Vertex.flip(), eu.mihosoft.vrl.v3d.Vertex.interpolate(), and eu.mihosoft.vrl.v3d.Vertex.Vertex().

pos

Vector3d eu.mihosoft.vrl.v3d.Vertex.pos

Vertex position.

Definition at line 49 of file Vertex.java.

Referenced by eu.mihosoft.vrl.v3d.Edge._toPolygons(), eu.mihosoft.vrl.v3d.Edge.boundaryPaths(), eu.mihosoft.vrl.v3d.Vertex.clone(), eu.mihosoft.vrl.v3d.Edge.colinear(), eu.mihosoft.vrl.v3d.Polygon.contains(), eu.mihosoft.vrl.v3d.Edge.contains(), eu.mihosoft.vrl.v3d.Bounds.contains(), eu.mihosoft.vrl.v3d.Edge.Edge(), eu.mihosoft.vrl.v3d.Edge.equals(), eu.mihosoft.vrl.v3d.Vertex.equals(), eu.mihosoft.vrl.v3d.Edge.falseBoundaryEdgeSharedWithOtherEdge(), eu.mihosoft.vrl.v3d.CSG.getBounds(), eu.mihosoft.vrl.v3d.Polygon.getBounds(), eu.mihosoft.vrl.v3d.Edge.getClosestPoint(), eu.mihosoft.vrl.v3d.Vertex.getX(), eu.mihosoft.vrl.v3d.Vertex.getY(), eu.mihosoft.vrl.v3d.Vertex.getZ(), eu.mihosoft.vrl.v3d.Vertex.interpolate(), eu.mihosoft.vrl.v3d.Extrude.isCCW(), eu.mihosoft.vrl.v3d.Edge.isThisPointOneOfMine(), eu.mihosoft.vrl.v3d.Edge.length(), eu.mihosoft.vrl.v3d.CSGtoJavafx.meshFromPolygon(), eu.mihosoft.vrl.v3d.CSG.minkowskiHullShape(), eu.mihosoft.vrl.v3d.ext.org.poly2tri.PolygonUtil.pruneDuplicatePoints(), eu.mihosoft.vrl.v3d.Plane.splitPolygon(), eu.mihosoft.vrl.v3d.Edge.toPolygons(), eu.mihosoft.vrl.v3d.svg.SVGExporter.toPolyLine(), eu.mihosoft.vrl.v3d.Vertex.toString(), eu.mihosoft.vrl.v3d.Vertex.transform(), and eu.mihosoft.vrl.v3d.Vertex.Vertex().

weight

double eu.mihosoft.vrl.v3d.Vertex.weight = 1.0

private

The weight.

Definition at line 57 of file Vertex.java.

Referenced by eu.mihosoft.vrl.v3d.Vertex.clone(), eu.mihosoft.vrl.v3d.Vertex.getWeight(), eu.mihosoft.vrl.v3d.Vertex.setWeight(), eu.mihosoft.vrl.v3d.Vertex.transform(), and eu.mihosoft.vrl.v3d.Vertex.Vertex().

---

The documentation for this class was generated from the following file:

• JCSG/src/main/java/eu/mihosoft/vrl/v3d/Vertex.java
