eu.mihosoft.vrl.v3d.Vector3d Class Reference
Inheritance diagram for eu.mihosoft.vrl.v3d.Vector3d:
Inheritance graph
[legend]
Collaboration diagram for eu.mihosoft.vrl.v3d.Vector3d:
Collaboration graph
[legend]

Public Member Functions

 Vector3d (double x, double y, double z)

 Vector3d (Number x, Number y, Number z)

 Vector3d (double x, double y)

 Vector3d (Number x, Number y)

Vector3d clone ()

Vector3d negated ()

Vector3d plus (Vector3d v)

Vector3d minus (Vector3d v)

Vector3d times (double a)

Vector3d times (Vector3d a)

Vector3d dividedBy (double a)

double dot (Vector3d a)

Vector3d lerp (Vector3d a, double t)

double magnitude ()

Vector3d normalized ()

Vector3d cross (Vector3d a)

String toStlString ()

StringBuilder toStlString (StringBuilder sb)

String toObjString ()

StringBuilder toObjString (StringBuilder sb)

Vector3d transform (Transform transform)

Vector3d transformed (Transform transform)

Vector3d transform (Transform transform, double amount)

Vector3d transformed (Transform transform, double amount)

String toString ()

boolean equals (Object obj)

boolean test (Object obj, double epsilon)

double angle (Vector3d v)

int hashCode ()

Vector3d orthogonal ()


Static Public Member Functions

static Vector3d xy (double x, double y)

static Vector3d xy (Number x, Number y)

static Vector3d xyz (double x, double y, double z)

static Vector3d xyz (Number x, Number y, Number z)

static Vector3d x (double x)

static Vector3d y (double y)

static Vector3d z (double z)


Static Public Attributes

static final Vector3d ZERO = new Vector3d(0, 0, 0)

static final Vector3d UNITY = new Vector3d(1, 1, 1)

static final Vector3d X_ONE = new Vector3d(1, 0, 0)

static final Vector3d Y_ONE = new Vector3d(0, 1, 0)

static final Vector3d Z_ONE = new Vector3d(0, 0, 1)


Static Private Attributes

static final long serialVersionUID = 1878117798187075166L


Detailed Description

3D Vector3d.

Author
Michael Hoffer <info@.nosp@m.mich.nosp@m.aelho.nosp@m.ffer.nosp@m..de>

Definition at line 48 of file Vector3d.java.

Constructor & Destructor Documentation

◆ Vector3d() [1/4]

eu.mihosoft.vrl.v3d.Vector3d.Vector3d ( double  x,
double  y,
double  z
)

Creates a new vector.

Parameters
xx value
yy value
zz value

Definition at line 78 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.clone(), eu.mihosoft.vrl.v3d.Vector3d.cross(), eu.mihosoft.vrl.v3d.Vector3d.dividedBy(), eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Vector3d.negated(), eu.mihosoft.vrl.v3d.Vector3d.orthogonal(), eu.mihosoft.vrl.v3d.Vector3d.plus(), eu.mihosoft.vrl.v3d.Vector3d.test(), eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.xy(), eu.mihosoft.vrl.v3d.Vector3d.xyz(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ Vector3d() [2/4]

eu.mihosoft.vrl.v3d.Vector3d.Vector3d ( Number  x,
Number  y,
Number  z
)

Definition at line 84 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ Vector3d() [3/4]

eu.mihosoft.vrl.v3d.Vector3d.Vector3d ( double  x,
double  y
)

Creates a new vector with specified

x
eu.mihosoft.vrl.v3d.Vector3d.x
static Vector3d x(double x)
Definition: Vector3d.java:474

,

y
eu.mihosoft.vrl.v3d.Vector3d.y
static Vector3d y(double y)
Definition: Vector3d.java:484

and

z = 0
eu.mihosoft.vrl.v3d.Vector3d.z
static Vector3d z(double z)
Definition: Vector3d.java:494

.

Parameters
xx value
yy value

Definition at line 98 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ Vector3d() [4/4]

eu.mihosoft.vrl.v3d.Vector3d.Vector3d ( Number  x,
Number  y
)

Definition at line 105 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), and eu.mihosoft.vrl.v3d.Vector3d.y().

Here is the call graph for this function:

Member Function Documentation

◆ angle()

double eu.mihosoft.vrl.v3d.Vector3d.angle ( Vector3d  v)

Returns the angle between this and the specified vector.

Parameters
vvector
Returns
angle in radians

Definition at line 431 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.dot(), and eu.mihosoft.vrl.v3d.Vector3d.magnitude().

Referenced by eu.mihosoft.vrl.v3d.Fillet.outerFillet(), and eu.mihosoft.vrl.v3d.Edge.searchPlaneGroups().

Here is the call graph for this function:

◆ clone()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.clone ( )

Definition at line 141 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Bounds.Bounds(), eu.mihosoft.vrl.v3d.Bounds.clone(), eu.mihosoft.vrl.v3d.Plane.clone(), eu.mihosoft.vrl.v3d.Vertex.clone(), eu.mihosoft.vrl.v3d.ext.org.poly2tri.PolygonUtil.concaveToConvex(), eu.mihosoft.vrl.v3d.Polygon.fromPoints(), eu.mihosoft.vrl.v3d.Edge.toPolygon(), and eu.mihosoft.vrl.v3d.Vector3d.transformed().

Here is the call graph for this function:

◆ cross()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.cross ( Vector3d  a)

Returns the cross product of this vector and the specified vector.

Note: this vector is not modified.

Parameters
athe vector
Returns
the cross product of this vector and the specified vector.

Definition at line 291 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Plane.createFromPoints(), eu.mihosoft.vrl.v3d.Cylinder.toPolygons(), eu.mihosoft.vrl.v3d.Polygon.transform(), and eu.mihosoft.vrl.v3d.Polygon.translate().

Here is the call graph for this function:

◆ dividedBy()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.dividedBy ( double  a)

Returns this vector devided by the specified value.

Parameters
athe value

Note: this vector is not modified.

Returns
this vector devided by the specified value

Definition at line 217 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.normalized(), and eu.mihosoft.vrl.v3d.Extrude.normalizedX().

Here is the call graph for this function:

◆ dot()

double eu.mihosoft.vrl.v3d.Vector3d.dot ( Vector3d  a)

Returns the dot product of this vector and the specified vector.

Note: this vector is not modified.

Parameters
athe second vector
Returns
the dot product of this vector and the specified vector

Definition at line 230 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.angle(), eu.mihosoft.vrl.v3d.Plane.createFromPoints(), eu.mihosoft.vrl.v3d.Edge.getClosestPoint(), eu.mihosoft.vrl.v3d.Vector3d.magnitude(), eu.mihosoft.vrl.v3d.Vector3d.orthogonal(), eu.mihosoft.vrl.v3d.Plane.splitPolygon(), and eu.mihosoft.vrl.v3d.Polygon.transform().

Here is the call graph for this function:

◆ equals()

boolean eu.mihosoft.vrl.v3d.Vector3d.equals ( Object  obj)

Definition at line 401 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Plane.EPSILON_Point, and eu.mihosoft.vrl.v3d.Vector3d.test().

Referenced by eu.mihosoft.vrl.v3d.Edge.falseBoundaryEdgeSharedWithOtherEdge(), and eu.mihosoft.vrl.v3d.Polygon.validateAndInit().

Here is the call graph for this function:

◆ hashCode()

int eu.mihosoft.vrl.v3d.Vector3d.hashCode ( )

Definition at line 440 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ lerp()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.lerp ( Vector3d  a,
double  t
)

Linearly interpolates between this and the specified vector.

Note: this vector is not modified.

Parameters
avector
tinterpolation value
Returns
copy of this vector if
t = 0
; copy of a if
t = 1
; the point midway between this and the specified vector if
t = 0.5

Definition at line 245 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Vector3d.plus(), and eu.mihosoft.vrl.v3d.Vector3d.times().

Referenced by eu.mihosoft.vrl.v3d.Vertex.interpolate().

Here is the call graph for this function:

◆ magnitude()

double eu.mihosoft.vrl.v3d.Vector3d.magnitude ( )

Returns the magnitude of this vector.

Note: this vector is not modified.

Returns
the magnitude of this vector

Definition at line 256 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.dot().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.angle(), eu.mihosoft.vrl.v3d.Vector3d.normalized(), eu.mihosoft.vrl.v3d.Extrude.normalizedX(), and eu.mihosoft.vrl.v3d.Fillet.outerFillet().

Here is the call graph for this function:

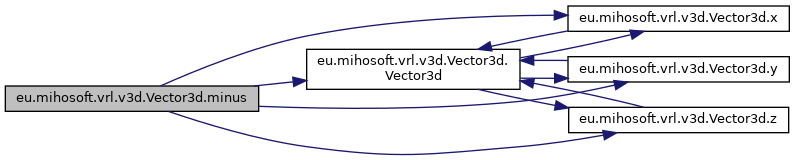

◆ minus()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.minus ( Vector3d  v)

Returns the difference of this vector and the specified vector.

Parameters
vthe vector to subtract

Note: this vector is not modified.

Returns
the difference of this vector and the specified vector

Definition at line 178 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Plane.createFromPoints(), eu.mihosoft.vrl.v3d.Edge.Edge(), eu.mihosoft.vrl.v3d.Edge.getClosestPoint(), eu.mihosoft.vrl.v3d.Edge.length(), eu.mihosoft.vrl.v3d.Vector3d.lerp(), eu.mihosoft.vrl.v3d.Extrude.normalizedX(), eu.mihosoft.vrl.v3d.Fillet.outerFillet(), eu.mihosoft.vrl.v3d.Plane.splitPolygon(), eu.mihosoft.vrl.v3d.Cylinder.toPolygons(), eu.mihosoft.vrl.v3d.Polygon.transform(), and eu.mihosoft.vrl.v3d.Polygon.translate().

Here is the call graph for this function:

◆ negated()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.negated ( )

Returns a negated copy of this vector.

Note: this vector is not modified.

Returns
a negated copy of this vector

Definition at line 152 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.CSG.addTabsReorientation(), eu.mihosoft.vrl.v3d.Plane.flip(), eu.mihosoft.vrl.v3d.Vertex.flip(), and eu.mihosoft.vrl.v3d.Cylinder.toPolygons().

Here is the call graph for this function:

◆ normalized()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.normalized ( )

Returns a normalized copy of this vector with length

1

.

Note: this vector is not modified.

Returns
a normalized copy of this vector with length
1

Definition at line 278 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.dividedBy(), and eu.mihosoft.vrl.v3d.Vector3d.magnitude().

Referenced by eu.mihosoft.vrl.v3d.Plane.createFromPoints(), eu.mihosoft.vrl.v3d.Edge.Edge(), eu.mihosoft.vrl.v3d.Plane.Plane(), eu.mihosoft.vrl.v3d.Cylinder.toPolygons(), and eu.mihosoft.vrl.v3d.Polygon.transform().

Here is the call graph for this function:

◆ orthogonal()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.orthogonal ( )

Creates a new vector which is orthogonal to this.

this_i , this_j , this_k greater than or equal to i,j,k € {1,2,3} permutation

looking for orthogonal vector o to vector this: this_i * o_i + this_j * o_j + this_k * o_k = 0

Returns
a new vector which is orthogonal to this

Definition at line 508 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.dot(), eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ plus()

Vector3d eu.mihosoft.vrl.v3d.Vector3d.plus ( Vector3d  v)

Returns the sum of this vector and the specified vector.

Parameters
vthe vector to add

Note: this vector is not modified.

Returns
the sum of this vector and the specified vector

Definition at line 165 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Cylinder.cylPoint(), eu.mihosoft.vrl.v3d.Edge.getClosestPoint(), eu.mihosoft.vrl.v3d.Vector3d.lerp(), and eu.mihosoft.vrl.v3d.Sphere.sphereVertex().

Here is the call graph for this function:

◆ test()

boolean eu.mihosoft.vrl.v3d.Vector3d.test ( Object  obj,
double  epsilon
)

Definition at line 405 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Edge.equals(), eu.mihosoft.vrl.v3d.Vector3d.equals(), eu.mihosoft.vrl.v3d.Vertex.equals(), and eu.mihosoft.vrl.v3d.Edge.isThisPointOneOfMine().

Here is the call graph for this function:

◆ times() [1/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.times ( double  a)

Returns the product of this vector and the specified value.

Parameters
athe value

Note: this vector is not modified.

Returns
the product of this vector and the specified value

Definition at line 191 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.Cylinder.cylPoint(), eu.mihosoft.vrl.v3d.Edge.getClosestPoint(), eu.mihosoft.vrl.v3d.Vector3d.lerp(), eu.mihosoft.vrl.v3d.Extrude.normalizedX(), and eu.mihosoft.vrl.v3d.Sphere.sphereVertex().

Here is the call graph for this function:

◆ times() [2/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.times ( Vector3d  a)

Returns the product of this vector and the specified vector.

Parameters
athe vector

Note: this vector is not modified.

Returns
the product of this vector and the specified vector

Definition at line 204 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ toObjString() [1/2]

String eu.mihosoft.vrl.v3d.Vector3d.toObjString ( )

Returns this vector in OBJ string format.

Returns
this vector in OBJ string format

Definition at line 325 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.Vertex.toObjString().

◆ toObjString() [2/2]

StringBuilder eu.mihosoft.vrl.v3d.Vector3d.toObjString ( StringBuilder  sb)

Returns this vector in OBJ string format.

Parameters
sbstring builder
Returns
the specified string builder

Definition at line 335 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ toStlString() [1/2]

String eu.mihosoft.vrl.v3d.Vector3d.toStlString ( )

Returns this vector in STL string format.

Returns
this vector in STL string format

Definition at line 304 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.Vertex.toStlString(), and eu.mihosoft.vrl.v3d.Polygon.toStlString().

◆ toStlString() [2/2]

StringBuilder eu.mihosoft.vrl.v3d.Vector3d.toStlString ( StringBuilder  sb)

Returns this vector in STL string format.

Parameters
sbstring builder
Returns
the specified string builder

Definition at line 314 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ toString()

String eu.mihosoft.vrl.v3d.Vector3d.toString ( )

Definition at line 393 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Referenced by eu.mihosoft.vrl.v3d.Vertex.toString().

Here is the call graph for this function:

◆ transform() [1/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.transform ( Transform  transform)

Applies the specified transformation to this vector.

Parameters
transformthe transform to apply
Returns
this vector

Definition at line 348 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.transform().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.transform(), eu.mihosoft.vrl.v3d.Vertex.transform(), and eu.mihosoft.vrl.v3d.Vector3d.transformed().

Here is the call graph for this function:

◆ transform() [2/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.transform ( Transform  transform,
double  amount
)

Applies the specified transformation to this vector.

Parameters
transformthe transform to apply
amountthe amount
Returns
this vector

Definition at line 372 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.transform().

Here is the call graph for this function:

◆ transformed() [1/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.transformed ( Transform  transform)

Returns a transformed copy of this vector.

Parameters
transformthe transform to apply

Note: this vector is not modified.

Returns
a transformed copy of this vector

Definition at line 361 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.clone(), and eu.mihosoft.vrl.v3d.Vector3d.transform().

Referenced by eu.mihosoft.vrl.v3d.svg.SVGExporter.toPolyLine().

Here is the call graph for this function:

◆ transformed() [2/2]

Vector3d eu.mihosoft.vrl.v3d.Vector3d.transformed ( Transform  transform,
double  amount
)

Returns a transformed copy of this vector.

Parameters
transformthe transform to apply

Note: this vector is not modified.

Parameters
amountthe amount
Returns
a transformed copy of this vector

Definition at line 385 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.clone(), and eu.mihosoft.vrl.v3d.Vector3d.transform().

Here is the call graph for this function:

◆ x()

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.x ( double  x)
static

Creates a new vector with specified

x

.

Parameters
xx value
Returns
a new vector
[x,0,0]

Definition at line 474 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d().

Referenced by eu.mihosoft.vrl.v3d.Extrude.bezierToTransforms(), eu.mihosoft.vrl.v3d.Bounds.Bounds(), eu.mihosoft.vrl.v3d.Vector3d.clone(), eu.mihosoft.vrl.v3d.Edge.colinear(), eu.mihosoft.vrl.v3d.ext.org.poly2tri.PolygonUtil.concaveToConvex(), eu.mihosoft.vrl.v3d.Polygon.contains(), eu.mihosoft.vrl.v3d.Edge.contains(), eu.mihosoft.vrl.v3d.Bounds.contains(), eu.mihosoft.vrl.v3d.Vector3d.cross(), eu.mihosoft.vrl.v3d.Vector3d.dividedBy(), eu.mihosoft.vrl.v3d.Vector3d.dot(), eu.mihosoft.vrl.v3d.XModifier.eval(), eu.mihosoft.vrl.v3d.TextExtrude.evalCubicBezier(), eu.mihosoft.vrl.v3d.TextExtrude.evalQuadBezier(), eu.mihosoft.vrl.v3d.CSG.getBounds(), eu.mihosoft.vrl.v3d.Polygon.getBounds(), eu.mihosoft.vrl.v3d.Vertex.getX(), eu.mihosoft.vrl.v3d.Vector3d.hashCode(), eu.mihosoft.vrl.v3d.Bounds.intersects(), eu.mihosoft.vrl.v3d.Extrude.isCCW(), eu.mihosoft.vrl.v3d.CSGtoJavafx.meshFromPolygon(), eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Transform.mirror(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), eu.mihosoft.vrl.v3d.Extrude.moveBezier(), eu.mihosoft.vrl.v3d.Vector3d.negated(), eu.mihosoft.vrl.v3d.Extrude.normalizedX(), eu.mihosoft.vrl.v3d.Vector3d.orthogonal(), eu.mihosoft.vrl.v3d.Fillet.outerFillet(), eu.mihosoft.vrl.v3d.Extrude.pathToTransforms(), com.neuronrobotics.bowlerkernel.Bezier3d.manipulation.performMove(), eu.mihosoft.vrl.v3d.Vector3d.plus(), eu.mihosoft.vrl.v3d.Transform.rot(), eu.mihosoft.vrl.v3d.Transform.scale(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP1(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP2(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setEnd(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setStart(), eu.mihosoft.vrl.v3d.Vector3d.test(), eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Matrix3d.times(), eu.mihosoft.vrl.v3d.Vector3d.toObjString(), eu.mihosoft.vrl.v3d.Cube.toPolygons(), eu.mihosoft.vrl.v3d.RoundedCube.toPolygons(), eu.mihosoft.vrl.v3d.svg.SVGExporter.toPolyLine(), eu.mihosoft.vrl.v3d.Vector3d.toStlString(), eu.mihosoft.vrl.v3d.Vector3d.toString(), eu.mihosoft.vrl.v3d.CSG.toXMax(), eu.mihosoft.vrl.v3d.CSG.toXMin(), eu.mihosoft.vrl.v3d.Transform.transform(), eu.mihosoft.vrl.v3d.Transform.translate(), eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.xy(), and eu.mihosoft.vrl.v3d.Vector3d.xyz().

Here is the call graph for this function:

◆ xy() [1/2]

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.xy ( double  x,
double  y
)
static

Creates a new vector with specified

x

,

y

and

z = 0

.

Parameters
xx value
yy value

Definition at line 119 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), and eu.mihosoft.vrl.v3d.Vector3d.y().

Referenced by eu.mihosoft.vrl.v3d.Vector3d.xy().

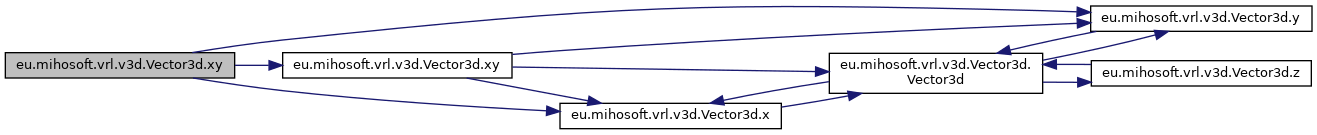

Here is the call graph for this function:

◆ xy() [2/2]

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.xy ( Number  x,
Number  y
)
static

Definition at line 122 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.xy(), and eu.mihosoft.vrl.v3d.Vector3d.y().

Here is the call graph for this function:

◆ xyz() [1/2]

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.xyz ( double  x,
double  y,
double  z
)
static

Creates a new vector with specified

x

,

y

and

z

.

Parameters
xx value
yy value
zz value

Definition at line 134 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ xyz() [2/2]

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.xyz ( Number  x,
Number  y,
Number  z
)
static

Definition at line 137 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.x(), eu.mihosoft.vrl.v3d.Vector3d.y(), and eu.mihosoft.vrl.v3d.Vector3d.z().

Here is the call graph for this function:

◆ y()

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.y ( double  y)
static

Creates a new vector with specified

y

.

Parameters
yy value
Returns
a new vector
[0,y,0]

Definition at line 484 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d().

Referenced by eu.mihosoft.vrl.v3d.Extrude.bezierToTransforms(), eu.mihosoft.vrl.v3d.Bounds.Bounds(), eu.mihosoft.vrl.v3d.Vector3d.clone(), eu.mihosoft.vrl.v3d.Edge.colinear(), eu.mihosoft.vrl.v3d.ext.org.poly2tri.PolygonUtil.concaveToConvex(), eu.mihosoft.vrl.v3d.Polygon.contains(), eu.mihosoft.vrl.v3d.Edge.contains(), eu.mihosoft.vrl.v3d.Bounds.contains(), eu.mihosoft.vrl.v3d.Vector3d.cross(), eu.mihosoft.vrl.v3d.Vector3d.dividedBy(), eu.mihosoft.vrl.v3d.Vector3d.dot(), eu.mihosoft.vrl.v3d.YModifier.eval(), eu.mihosoft.vrl.v3d.TextExtrude.evalCubicBezier(), eu.mihosoft.vrl.v3d.TextExtrude.evalQuadBezier(), eu.mihosoft.vrl.v3d.CSG.getBounds(), eu.mihosoft.vrl.v3d.Polygon.getBounds(), eu.mihosoft.vrl.v3d.Vertex.getY(), eu.mihosoft.vrl.v3d.Vector3d.hashCode(), eu.mihosoft.vrl.v3d.Bounds.intersects(), eu.mihosoft.vrl.v3d.Extrude.isCCW(), eu.mihosoft.vrl.v3d.CSGtoJavafx.meshFromPolygon(), eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Transform.mirror(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), eu.mihosoft.vrl.v3d.Extrude.moveBezier(), eu.mihosoft.vrl.v3d.Vector3d.negated(), eu.mihosoft.vrl.v3d.Vector3d.orthogonal(), eu.mihosoft.vrl.v3d.Extrude.pathToTransforms(), com.neuronrobotics.bowlerkernel.Bezier3d.manipulation.performMove(), eu.mihosoft.vrl.v3d.Vector3d.plus(), eu.mihosoft.vrl.v3d.Transform.rot(), eu.mihosoft.vrl.v3d.Transform.scale(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP1(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP2(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setEnd(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setStart(), eu.mihosoft.vrl.v3d.Vector3d.test(), eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Matrix3d.times(), eu.mihosoft.vrl.v3d.Vector3d.toObjString(), eu.mihosoft.vrl.v3d.Cube.toPolygons(), eu.mihosoft.vrl.v3d.Cylinder.toPolygons(), eu.mihosoft.vrl.v3d.RoundedCube.toPolygons(), eu.mihosoft.vrl.v3d.svg.SVGExporter.toPolyLine(), eu.mihosoft.vrl.v3d.Vector3d.toStlString(), eu.mihosoft.vrl.v3d.Vector3d.toString(), eu.mihosoft.vrl.v3d.CSG.toYMax(), eu.mihosoft.vrl.v3d.CSG.toYMin(), eu.mihosoft.vrl.v3d.Transform.transform(), eu.mihosoft.vrl.v3d.Transform.translate(), eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), eu.mihosoft.vrl.v3d.Vector3d.xy(), and eu.mihosoft.vrl.v3d.Vector3d.xyz().

Here is the call graph for this function:

◆ z()

static Vector3d eu.mihosoft.vrl.v3d.Vector3d.z ( double  z)
static

Creates a new vector with specified

z

.

Parameters
zz value
Returns
a new vector
[0,0,z]

Definition at line 494 of file Vector3d.java.

References eu.mihosoft.vrl.v3d.Vector3d.Vector3d().

Referenced by eu.mihosoft.vrl.v3d.Extrude.bezierToTransforms(), eu.mihosoft.vrl.v3d.Bounds.Bounds(), eu.mihosoft.vrl.v3d.Vector3d.clone(), eu.mihosoft.vrl.v3d.Edge.colinear(), eu.mihosoft.vrl.v3d.ext.org.poly2tri.PolygonUtil.concaveToConvex(), eu.mihosoft.vrl.v3d.Edge.contains(), eu.mihosoft.vrl.v3d.Bounds.contains(), eu.mihosoft.vrl.v3d.Vector3d.cross(), eu.mihosoft.vrl.v3d.Vector3d.dividedBy(), eu.mihosoft.vrl.v3d.Vector3d.dot(), eu.mihosoft.vrl.v3d.ZModifier.eval(), eu.mihosoft.vrl.v3d.CSG.getBounds(), eu.mihosoft.vrl.v3d.Polygon.getBounds(), eu.mihosoft.vrl.v3d.Vertex.getZ(), eu.mihosoft.vrl.v3d.Vector3d.hashCode(), eu.mihosoft.vrl.v3d.Bounds.intersects(), eu.mihosoft.vrl.v3d.CSGtoJavafx.meshFromPolygon(), eu.mihosoft.vrl.v3d.Vector3d.minus(), eu.mihosoft.vrl.v3d.Transform.mirror(), eu.mihosoft.vrl.v3d.CSG.move(), eu.mihosoft.vrl.v3d.Transform.move(), eu.mihosoft.vrl.v3d.Vector3d.negated(), eu.mihosoft.vrl.v3d.Vector3d.orthogonal(), eu.mihosoft.vrl.v3d.Extrude.pathToTransforms(), com.neuronrobotics.bowlerkernel.Bezier3d.manipulation.performMove(), eu.mihosoft.vrl.v3d.Vector3d.plus(), eu.mihosoft.vrl.v3d.Transform.rot(), eu.mihosoft.vrl.v3d.Transform.scale(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP1(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setCP2(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setEnd(), com.neuronrobotics.bowlerkernel.Bezier3d.BezierEditor.setStart(), eu.mihosoft.vrl.v3d.Vector3d.test(), eu.mihosoft.vrl.v3d.Vector3d.times(), eu.mihosoft.vrl.v3d.Matrix3d.times(), eu.mihosoft.vrl.v3d.Vector3d.toObjString(), eu.mihosoft.vrl.v3d.Cube.toPolygons(), eu.mihosoft.vrl.v3d.Cylinder.toPolygons(), eu.mihosoft.vrl.v3d.RoundedCube.toPolygons(), eu.mihosoft.vrl.v3d.Vector3d.toStlString(), eu.mihosoft.vrl.v3d.Vector3d.toString(), eu.mihosoft.vrl.v3d.CSG.toZMax(), eu.mihosoft.vrl.v3d.CSG.toZMin(), eu.mihosoft.vrl.v3d.Transform.transform(), eu.mihosoft.vrl.v3d.Transform.translate(), eu.mihosoft.vrl.v3d.Vector3d.Vector3d(), and eu.mihosoft.vrl.v3d.Vector3d.xyz().

Here is the call graph for this function:

Member Data Documentation

◆ serialVersionUID

final long eu.mihosoft.vrl.v3d.Vector3d.serialVersionUID = 1878117798187075166L
staticprivate

Definition at line 54 of file Vector3d.java.

◆ UNITY

final Vector3d eu.mihosoft.vrl.v3d.Vector3d.UNITY = new Vector3d(1, 1, 1)
static

The Constant UNITY.

Definition at line 60 of file Vector3d.java.

◆ X_ONE

final Vector3d eu.mihosoft.vrl.v3d.Vector3d.X_ONE = new Vector3d(1, 0, 0)
static

The Constant X_ONE.

Definition at line 63 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.CSG.addTabsReorientation(), and eu.mihosoft.vrl.v3d.Extrude.normalizedX().

◆ Y_ONE

final Vector3d eu.mihosoft.vrl.v3d.Vector3d.Y_ONE = new Vector3d(0, 1, 0)
static

The Constant Y_ONE.

Definition at line 66 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.CSG.addTabsReorientation(), and eu.mihosoft.vrl.v3d.Fillet.outerFillet().

◆ Z_ONE

final Vector3d eu.mihosoft.vrl.v3d.Vector3d.Z_ONE = new Vector3d(0, 0, 1)
static

The Constant Z_ONE.

Definition at line 69 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.CSG.addTabsReorientation(), and eu.mihosoft.vrl.v3d.Cylinder.Cylinder().

◆ ZERO

final Vector3d eu.mihosoft.vrl.v3d.Vector3d.ZERO = new Vector3d(0, 0, 0)
static

The Constant ZERO.

Definition at line 57 of file Vector3d.java.

Referenced by eu.mihosoft.vrl.v3d.Cube.Cube(), eu.mihosoft.vrl.v3d.Cylinder.Cylinder(), eu.mihosoft.vrl.v3d.CSG.getBounds(), eu.mihosoft.vrl.v3d.RoundedCube.RoundedCube(), and eu.mihosoft.vrl.v3d.Polygon.validateAndInit().

The documentation for this class was generated from the following file:
Generated by doxygen 1.9.1
